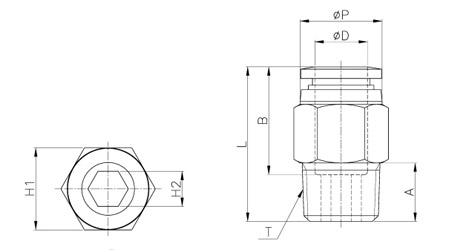

| MODEL | ¡éD | ¡éP | T | L | A | B | H1(Hex) | H2(Hex) | ORIFICE | WEIGHT(g) | BOX(EA) |
| PC 04-M5 | 4 | 10.0 | M5*0.8p | 20.9 | 4.0 | 14.8 | 10 | - | 2.5 | 7.0 | 100 |
| PC 04-M6 | 4 | 10.0 | M6*1.0p | 20.9 | 4.1 | 14.8 | 10 | - | 3.0 | 8.0 | 100 |
| PC 04-01 | 4 | 10.0 | R 1/8 | 22.0 | 8.0 | 14.8 | 10 | 3 | 3.0 | 9.0 | 100 |
| PC 04-02 | 4 | 10.0 | R 1/4 | 2.0 | 10.0 | 14.8 | 14 | 3 | 3.0 | 16.0 | 100 |
| PC 04-03 | 4 | 10.0 | R 3/8 | 22.0 | 11.0 | 14.8 | 17 | 3 | 3.0 | 28.0 | 100 |
| PC 06-M5 | 6 | 12.0 | M5*0.8p | 23.1 | 4.0 | 16.4 | 12 | - | 2.5 | 10.0 | 100 |
| PC 06-M6 | 6 | 12.0 | M6*1.0p | 23.0 | 4.1 | 16.4 | 12 | - | 3.0 | 10.0 | 100 |
| PC 06-01 | 6 | 12.0 | R 1/8 | 23.4 | 8.0 | 16.4 | 12 | 4 | 4.0 | 10.0 | 100 |
| PC 06-02 | 6 | 12.0 | R 1/4 | 21.9 | 10.0 | 16.4 | 14 | 5 | 5.0 | 14.0 | 100 |
| PC 06-03 | 6 | 12.0 | R 3/8 | 22.9 | 11.0 | 16.4 | 17 | 5 | 5.0 | 25.0 | 100 |
| PC 06-04 | 6 | 12.0 | R 1/2 | 29.2 | 14.0 | 16.4 | 19 | 5 | 5.0 | 53.0 | 50 |
| PC 08-01 | 8 | 14.0 | R 1/8 | 28.4 | 8.0 | 18.4 | 14 | 5 | 5.0 | 15.0 | 100 |
| PC 08-02 | 8 | 14.0 | R 1/4 | 26.4 | 10.0 | 18.4 | 14 | 6 | 6.0 | 16.0 | 100 |
| PC 08-03 | 8 | 14.0 | R 3/8 | 23.9 | 11.0 | 18.4 | 17 | 6 | 6.0 | 24.0 | 100 |
| PC 08-04 | 8 | 14.0 | R 1/2 | 29.4 | 14.0 | 18.4 | 19 | 6 | 6.0 | 49.0 | 50 |
| PC 10-01 | 10 | 16.1 | R 1/8 | 29.9 | 8.0 | 19.7 | 17 | 5 | 5.0 | 21.0 | 100 |
| PC 10-02 | 10 | 16.1 | R 1/4 | 31.4 | 10.0 | 19.7 | 17 | 6 | 6.0 | 24.0 | 100 |
| PC 10-03 | 10 | 16.1 | R 3/8 | 27.5 | 11.0 | 19.7 | 17 | 8 | 8.0 | 24.0 | 100 |
| PC 10-04 | 10 | 16.1 | R 1/2 | 29.9 | 14.0 | 19.7 | 19 | 8 | 8.0 | 45.0 | 50 |
| PC 12-01 | 12 | 19.0 | R 1/8 | 33.2 | 8.0 | 21.9 | 19 | 5 | 5.0 | 30.0 | 50 |
| PC 12-02 | 12 | 19.0 | R 1/4 | 33.7 | 10.0 | 21.9 | 19 | 6 | 6.0 | 30.0 | 50 |
| PC 12-03 | 12 | 19.0 | R 3/8 | 30.7 | 11.0 | 21.9 | 19 | 8 | 8.0 | 29.0 | 50 |
| PC 12-04 | 12 | 19.0 | R 1/2 | 30.2 | 14.0 | 21.9 | 19 | 8 | 8.0 | 38.0 | 50 |
| PC 16-03 | 16 | 24.0 | R 3/8 | 37.5 | 11.0 | 24.0 | 24 | 10 | 10.0 | 51.0 | 25 |
| PC 16-04 | 16 | 24.0 | R 1/2 | 40.5 | 14.0 | 24.0 | 24 | 10 | 10.0 | 65.0 | 25 |
