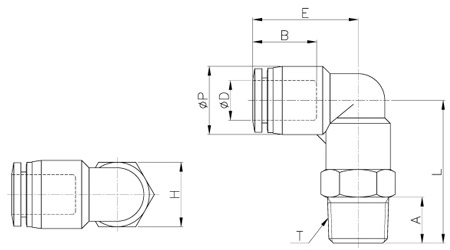

| MODEL | ¡éD | ¡éP | T | L | E | A | B | H(Hex) | ORIFICE | WEIGHT(g) | BOX(EA) |
| PL04-M5 | 4 | 10.5 | M5*0.8p | 20.5 | 18.5 | 4.0 | 14.8 | 10 | 2.5 | 6.0 | 100 |
| PL04-M6 | 4 | 10.5 | M6*1.0p | 20.6 | 18.5 | 4.1 | 14.8 | 10 | 3.0 | 8.0 | 100 |
| PL04-01 | 4 | 10.5 | R 1/8 | 24.5 | 18.5 | 8.0 | 14.8 | 10 | 3.0 | 10.0 | 100 |
| PL04-02 | 4 | 10.5 | R 1/4 | 26.5 | 18.5 | 10.0 | 14.8 | 14 | 3.0 | 15.0 | 100 |
| PL04-03 | 4 | 10.5 | R 3/8 | 27.5 | 18.5 | 11.0 | 14.8 | 17 | 3.0 | 26.0 | 50 |
| PL06-M5 | 6 | 12.5 | M5*0.8p | 22.5 | 20.3 | 4.0 | 16.4 | 12 | 2.5 | 7.0 | 100 |
| PL06-M6 | 6 | 12.5 | M6*1.0p | 22.6 | 20.3 | 4.1 | 16.4 | 12 | 3.0 | 12.0 | 100 |
| PL06-01 | 6 | 12.5 | R 1/8 | 26.5 | 20.3 | 8.0 | 16.4 | 12 | 4.0 | 13.0 | 100 |
| PL06-02 | 6 | 12.5 | R 1/4 | 29.5 | 20.3 | 10.0 | 16.4 | 14 | 4.0 | 19.0 | 100 |
| PL06-03 | 6 | 12.5 | R 3/8 | 30.5 | 20.3 | 11.0 | 16.4 | 17 | 4.0 | 27.0 | 50 |
| PL06-04 | 6 | 12.5 | R 1/2 | 33.5 | 20.3 | 14.0 | 16.4 | 21 | 4.0 | 39.0 | 50 |
| PL08-01 | 8 | 14.8 | R 1/8 | 28.0 | 22.9 | 8.0 | 18.3 | 14 | 6.0 | 18.0 | 50 |
| PL08-02 | 8 | 14.8 | R 1/4 | 31.0 | 22.9 | 10.0 | 18.3 | 14 | 6.0 | 22.0 | 50 |
| PL08-03 | 8 | 14.8 | R 3/8 | 32.0 | 22.9 | 11.0 | 18.3 | 17 | 6.0 | 27.0 | 50 |
| PL08-04 | 8 | 14.8 | R 1/2 | 35.0 | 22.9 | 14.0 | 18.3 | 21 | 6.0 | 43.0 | 50 |
| PL10-01 | 10 | 17.5 | R 1/8 | 28.5 | 24.6 | 8.0 | 20.2 | 17 | 6.0 | 26.0 | 50 |
| PL10-02 | 10 | 17.5 | R 1/4 | 31.5 | 24.6 | 10.0 | 20.2 | 17 | 8.0 | 28.0 | 50 |
| PL10-03 | 10 | 17.5 | R 3/8 | 32.5 | 24.6 | 11.0 | 20.2 | 17 | 8.0 | 30.0 | 50 |
| PL10-04 | 10 | 17.5 | R 1/2 | 35.5 | 24.6 | 14.0 | 20.2 | 21 | 8.0 | 48.0 | 25 |
| PL12-01 | 12 | 20.5 | R 1/8 | 32.4 | 28.7 | 8.0 | 22.9 | 19 | 6.0 | 42.0 | 25 |
| PL12-02 | 12 | 20.5 | R 1/4 | 34.4 | 28.7 | 10.0 | 22.9 | 19 | 9.0 | 40.0 | 25 |
| PL12-03 | 12 | 20.5 | R 3/8 | 35.4 | 28.7 | 11.0 | 22.9 | 19 | 10.0 | 43.0 | 25 |
| PL12-04 | 12 | 20.5 | R 1/2 | 38.4 | 28.7 | 14.0 | 22.9 | 21 | 10.0 | 52.0 | 25 |
| PL16-03 | 16 | 25.5 | R 3/8 | 42.8 | 32.8 | 11.0 | 24.1 | 24 | 10.0 | 69.0 | 20 |
| PL16-04 | 16 | 25.5 | R 1/2 | 45.8 | 32.8 | 14.0 | 24.1 | 24 | 13.0 | 77.0 | 20 |
