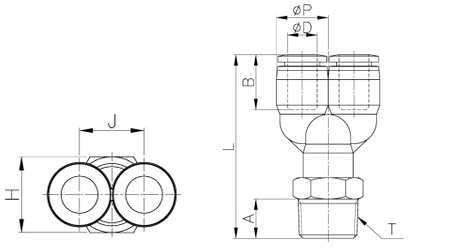

| MODEL | ¡éD | ¡éP | T | L | J | A | B | H(Hex) | ORIFICE | WEIGHT(g) | BOX(EA) |
| PWT04-M5 | 4 | 10.5 | M5*0.8p | 39.4 | 10.5 | 4.0 | 15.5 | 10 | 2.5 | 11.0 | 100 |
| PWT04-M6 | 4 | 10.5 | M6*1.0p | 39.5 | 10.5 | 4.1 | 15.5 | 10 | 3.0 | 11.0 | 100 |
| PWT04-01 | 4 | 10.5 | R 1/8 | 43.4 | 10.5 | 8.0 | 15.5 | 10 | 3.0 | 12.0 | 100 |
| PWT04-02 | 4 | 10.5 | R 1/4 | 45.4 | 10.5 | 10.0 | 15.5 | 14 | 3.0 | 18.0 | 100 |
| PWT04-03 | 4 | 10.5 | R 3/8 | 46.4 | 10.5 | 11.0 | 15.5 | 17 | 3.0 | 27.0 | 50 |
| PWT06-M5 | 6 | 12.5 | M5*0.8p | 40.4 | 12.5 | 4.0 | 16.9 | 12 | 2.5 | 16.0 | 50 |
| PWT06-M6 | 6 | 12.5 | M6*1.0p | 40.5 | 12.5 | 4.1 | 16.9 | 12 | 3.0 | 16.0 | 50 |
| PWT06-01 | 6 | 12.5 | R 1/8 | 44.4 | 12.5 | 8.0 | 16.9 | 12 | 4.0 | 17.0 | 50 |
| PWT06-02 | 6 | 12.5 | R 1/4 | 47.4 | 12.5 | 10.0 | 16.9 | 14 | 4.0 | 22.0 | 50 |
| PWT06-03 | 6 | 12.5 | R 3/8 | 48.4 | 12.5 | 11.0 | 16.9 | 17 | 4.0 | 32.0 | 50 |
| PWT06-04 | 6 | 12.5 | R 1/2 | 51.4 | 12.5 | 14.0 | 16.9 | 21 | 4.0 | 54.0 | 25 |
| PWT08-01 | 8 | 14.5 | R 1/8 | 47.4 | 14.5 | 8.0 | 18.6 | 14 | 6.0 | 22.0 | 50 |
| PWT08-02 | 8 | 14.5 | R 1/4 | 50.4 | 14.5 | 10.0 | 18.6 | 14 | 6.0 | 24.0 | 50 |
| PWT08-03 | 8 | 14.5 | R 3/8 | 51.4 | 14.5 | 11.0 | 18.6 | 17 | 6.0 | 38.0 | 50 |
| PWT08-04 | 8 | 14.5 | R 1/2 | 54.4 | 14.5 | 14.0 | 18.6 | 21 | 6.0 | 50.0 | 25 |
| PWT10-01 | 10 | 17.6 | R 1/8 | 51.3 | 17.6 | 8.0 | 20.3 | 17 | 6.0 | 35.0 | 25 |
| PWT10-02 | 10 | 17.6 | R 1/4 | 54.3 | 17.6 | 10.0 | 20.3 | 17 | 8.0 | 37.0 | 25 |
| PWT10-03 | 10 | 17.6 | R 3/8 | 55.3 | 17.6 | 11.0 | 20.3 | 17 | 8.0 | 40.0 | 25 |
| PWT10-04 | 10 | 17.6 | R 1/2 | 58.3 | 17.6 | 14.0 | 20.3 | 21 | 8.0 | 63.0 | 25 |
| PWT12-01 | 12 | 21.0 | R 1/8 | 57.2 | 21.0 | 8.0 | 22.7 | 19 | 6.0 | 54.0 | 25 |
| PWT12-02 | 12 | 21.0 | R 1/4 | 59.2 | 21.0 | 10.0 | 22.7 | 19 | 9.0 | 52.0 | 25 |
| PWT12-03 | 12 | 21.0 | R 3/8 | 60.2 | 21.0 | 11.0 | 22.7 | 19 | 10.0 | 53.0 | 25 |
| PWT12-04 | 12 | 21.0 | R 1/2 | 63.2 | 21.0 | 14.0 | 22.7 | 21 | 10.0 | 66.0 | 25 |
